Headphone Packaging Boxes: Protection, Insert Design and Retail Display

A headphone packaging box should protect the ear cups, headband, hinges, controls and accessories while presenting the product clearly to retail and online customers. The most effective design uses a fitted insert to limit movement, separates cables and chargers from finished surfaces, and matches the outer box structure to the headphone size, weight and sales channel.

A well-designed headphone box insert holds the product at structurally stable areas without pressing directly against ear cushions, buttons, connectors or delicate cosmetic surfaces.

This balance is important because headphone packaging performs two different functions. It must protect a relatively complex three-dimensional product during handling, but it must also communicate sound quality, comfort, technology and brand positioning before the customer uses the product.

For audio clients developing custom retail packaging, EastColor provides electronic packaging boxes and bags with configurable paper materials, structural designs, inserts, printing and decorative finishes. (East Color)

Different Headphones Create Different Packaging Problems

There is no universal headphone packaging structure. Earbuds, portable on-ear headphones, over-ear headphones and gaming headsets differ significantly in size, geometry and accessory requirements.

Before choosing a box style, classify the product and identify its main packaging risks.

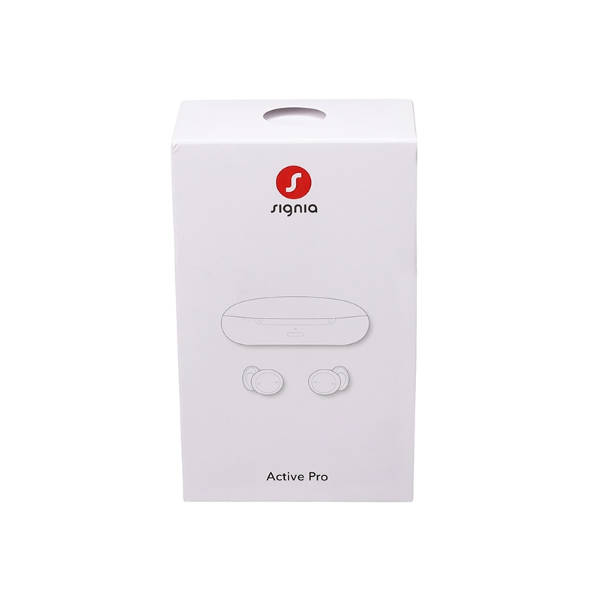

Earbuds and Charging Cases

Wireless earbuds are small, but their packaging can be structurally complex.

The box may need to hold:

• Charging case

• Earbuds

• Charging cable

• Ear tips in several sizes

• Quick-start guide

• Warranty information

The insert should make each item visible and easy to remove without allowing small components to become loose during shipping.

A layered structure often works well. The charging case can appear in the upper presentation area, while cables and replacement ear tips are placed below or in a separate compartment.

Over-Ear Headphones

Over-ear headphones require more volume and careful support.

Key risks include:

• Ear cups rotating during shipping

• Hinges receiving concentrated pressure

• Headbands becoming compressed

• Soft cushions rubbing against rough surfaces

• Decorative panels becoming scratched

• Cables striking the headphones

The insert should normally support the main frame and control ear-cup orientation without flattening the cushions.

Gaming Headsets

Gaming headsets may include an attached or detachable microphone, control module, USB adapter and multiple cables.

These parts should not be packed loosely around the headset. A microphone arm, in particular, should have dedicated clearance so that it is not forced against the box wall or main product.

Build the Packaging Around Three Functional Zones

A practical headphone package can be divided into three zones:

1. Product protection zone

2. Accessory organization zone

3. Brand and retail communication zone

Treating these zones separately makes it easier to identify structural conflicts.

Product Protection Zone

This zone contains the headphones, earbuds or charging case.

It should control:

• Product position

• Headband shape

• Ear-cup rotation

• Contact pressure

• Surface abrasion

• Removal direction

Accessory Organization Zone

This zone holds cables, adapters, ear tips, microphones, manuals and other components.

Its purpose is not only visual organization. It prevents harder accessories from moving into the product area and damaging finished surfaces.

Brand and Retail Communication Zone

This includes the outer panels, opening sequence, product images, feature descriptions and display surfaces.

A strong retail design should make the product category, model and main selling points easy to understand without covering the package with excessive text.

The internal structure should be approved before the final artwork because changes to insert depth, opening direction or accessory placement can affect the printable panels and unboxing sequence.

Choosing the Right Headphone Packaging Box Style

The box structure influences protection, packing efficiency, retail display and customer perception.

Rigid Lid-and-Base Box

A rigid lid-and-base box creates a clear two-piece opening and provides a substantial presentation.

It is often suitable for:

• Premium over-ear headphones

• Studio headphones

• Gift-oriented audio products

• Limited-edition models

• Products with a relatively high retail value

The insert can be positioned in the base, with printed information or protective padding inside the lid.

However, the lid should not contact or press against the top of the headphones when closed.

Magnetic Flip-Top Box

A magnetic flip-top structure provides a controlled opening experience and can be suitable for premium wireless headphones, earbuds and compact audio sets.

EastColor lists magnetic flip-top boxes, precision product slots and detachable foam trays among its electronic packaging structure options. (East Color)

This structure can support a premium presentation, but buyers should also review:

• Closure strength

• Product clearance

• Added material use

• Packing dimensions

• Whether the finished box needs a protective shipping carton

Drawer Box

A drawer or sleeve-and-tray box creates a staged reveal as the customer pulls out the inner tray.

It may be appropriate for:

• Earbuds

• Compact on-ear headphones

• Cables and audio accessories

• Product sets with layered compartments

The pull ribbon or finger notch should remain easy to use after the product and accessories have been loaded.

A tray that fits too tightly may become difficult to open, while an excessively loose tray can slide during handling.

Folding Carton

A folding carton is lighter and can be shipped flat before assembly. It is often selected for higher-volume retail programs and compact audio products.

It can include:

• Paperboard inserts

• Hanging tabs

• Windows

• Printed product information

• Tamper-evident closures

Folding cartons may require additional internal support for heavier over-ear headphones.

Corrugated Retail Box

A finely printed corrugated structure can combine product containment with additional shipping strength.

It may be suitable for:

• Larger gaming headsets

• Direct-to-consumer audio products

• E-commerce programs

• Products requiring a more functional packaging appearance

The visible flute profile, print method and opening experience should be evaluated against the brand’s retail positioning.

Box Structure Comparison

How to Design a Headphone Box Insert

The insert is responsible for product location, separation and much of the package’s protective performance.

It should be developed from an accurate product sample, technical drawing or 3D model.

Define the Stable Contact Points

Stable contact points may include:

• Strong headband sections

• Ear-cup outer frames

• Charging-case body

• Structural housing edges

• Reinforced product surfaces

Avoid using the following as primary support points:

• Soft ear cushions

• Control buttons

• Microphone arms

• Charging connectors

• Hinges

• Decorative covers

• Exposed cables

The insert should distribute pressure rather than concentrate it in one small area.

Control Ear-Cup Rotation

Many over-ear headphones use rotating or folding ear cups. This reduces storage volume, but it also creates movement during shipping.

The insert should define the intended packed position and prevent the ear cups from rotating into each other or contacting the box wall.

Where the design uses folded headphones, confirm that the hinges are not left under continuous stress.

Protect the Headband Shape

A narrow insert support placed in the wrong position may create pressure on the headband.

A better approach is to support the headphone around several stable areas while leaving clearance around softer or flexible components.

The correct geometry depends on whether the headband is:

• Fixed

• Adjustable

• Folding

• Suspended

• Padded

• Metal-reinforced

Make Product Removal Easy

Customers should not need to pull on the ear cushions, cable or headband adjustment mechanism to remove the headphones.

Useful removal features include:

• Finger recesses

• Pull ribbons

• Raised presentation platforms

• Accessible product edges

• Removable upper trays

The insert must protect the headphones during distribution without turning product removal into a forceful or confusing process.

Comparing Insert Materials

EastColor’s electronics packaging page identifies materials such as EVA foam, recycled PET felt, anti-static paper, corrugated paper and specialty paper, along with flocked EVA finishing options. (East Color)

The appropriate material depends on the product and packaging objective.

EVA Foam Inserts

An EVA foam insert can be die-cut to follow the shape of the headphone and its accessories.

It is commonly considered when the buyer requires:

• Precise product fit

• Clean black or colored presentation

• Multiple accessory cavities

• A recessed product position

• A soft or flocked surface

The insert thickness, hardness and cavity design should be tested with actual product weight.

Molded Pulp Inserts

Molded pulp can provide formed cavities while supporting a paper-based packaging direction.

It can be used to create:

• Charging-case recesses

• Earbud cavities

• Cable compartments

• Structural ribs

• Product-support platforms

The design should use ribs, walls and transitions to create stiffness without making the insert unnecessarily bulky.

Paperboard Inserts

Paperboard works particularly well when the main requirement is restraint and organization rather than deep cushioning.

Folded tabs and partitions can:

• Position cables

• Separate manuals

• Hold adapters

• Elevate the product

• Create a layered reveal

• Reduce the need for thick foam

For larger headphones, paperboard may be combined with corrugated supports or soft contact pads.

Organize Cables and Accessories Without Increasing Box Size

Accessories often determine whether a headphone package feels organized or inefficient.

A poorly planned accessory area creates one of two problems:

• Accessories are loose and may damage the product

• The package becomes much larger than necessary

Use the Space Beneath the Product

Where the box depth allows, a lower compartment can hold:

• Charging cables

• Audio cables

• USB adapters

• Airline adapters

• Spare ear tips

• Detachable microphones

• Printed documents

A removable upper tray can separate the main product from this compartment.

Avoid Tight Cable Bending

The cable compartment should accommodate the required coiling radius without placing concentrated stress near the connector.

The cable should also be restrained so that it does not spring out when the customer opens the package.

Separate Hard Accessories

Plugs, adapters and control modules should not share an open cavity with finished ear cups or charging cases.

A divider, sleeve, small carton or separate insert recess can prevent contact.

Design the Front Panel for Retail Display

Retail packaging has only a limited amount of time to communicate with the shopper.

The front panel should establish a clear hierarchy:

1. Brand

2. Product name

3. Headphone type

4. One or two primary benefits

5. Product image or controlled viewing window

Avoid placing too many technical specifications on the front. Detailed compatibility, battery, connectivity and operating information can be moved to the side or back panels.

Product Image or Transparent Window?

Both approaches can work, but they serve different purposes.

A large window should not be added only for visibility. Its effect on box stiffness, dust protection, product security and material separation should also be considered.

Hanging Display

Smaller earphone and headphone packages may need a hanging tab for retail hooks.

The tab position should be tested with the loaded package. An unbalanced box may tilt or tear around the hanging area.

The artwork must also remain readable when several packages are displayed closely together.

Create a Clear Unboxing Sequence

A premium unboxing experience does not require excessive layers.

A practical sequence might be:

1. Open the lid or sleeve

2. See the headphones in a controlled presentation position

3. Lift the product using a clear removal feature

4. Access cables and accessories beneath the tray

5. Find instructions without searching through loose components

This sequence creates visual order while keeping assembly manageable.

EastColor’s electronic packaging capabilities include structural development, 3D prototype design, mock-up samples, printed samples and die-cutting plan preparation, which are relevant when the opening sequence and insert fit need to be validated before production. (East Color)

Use Printing and Finishes to Support the Product Positioning

The surface design should reflect the headphone category.

A gaming headset may use bold contrast, technical graphics and spot gloss details. Studio headphones may benefit from restrained typography and matte surfaces. Lifestyle earbuds may use clean color fields, product photography and compact icon systems.

Available finishing directions can include:

• Foil stamping

• Embossing

• Debossing

• Spot UV

• Metallic effects

• Soft-touch paper

• Textured paper

• UV printing

• Laser-cut details

EastColor lists these among the material and finishing options used for customized electronic packaging. (East Color)

Use these processes selectively. Too many finishes can compete with the product information and increase production complexity.

Plan Separately for E-Commerce Shipping

A retail headphone box may still need a corrugated outer carton when shipped directly to customers.

The outer shipping system can help protect:

• Printed surfaces

• Rigid-box corners

• Magnetic closures

• Hanging tabs

• Windows

• Premium sleeves

• Retail seals

The space between the retail box and the shipping carton should be controlled so that the inner package does not repeatedly strike the outer walls.

A visually premium headphone packaging box should not be assumed to be parcel-ready until the complete product, insert, retail box and shipping carton have been evaluated together.

Validate the Packaging Before Mass Production

Sampling should progress from structure to appearance rather than beginning with a fully decorated production sample.

EastColor states that it provides pre-production samples for approval and supports structural engineering and CAD sampling as part of its custom packaging process. (East Color)

Common Headphone Packaging Mistakes

Designing Only Around the Product Outline

A simple outline does not account for hinge movement, cushion compression, accessory position or customer removal.

Pressing Directly on Ear Cushions

Continuous pressure can deform soft components and create an unattractive first presentation.

Leaving Cables Loose

Loose cables can rub against ear cups, strike the product or become tangled.

Making the Box Much Larger Than Necessary

An oversized box increases material, storage and shipping volume. It can also make a compact product appear poorly proportioned.

Hiding All Accessories Beneath the Product

Layering can reduce box dimensions, but the customer should still understand where accessories are located.

Prioritizing Decoration Over Structure

Foil, embossing and specialty paper cannot compensate for poor insert fit or weak accessory control.

Approving Only an Empty Sample

The final decision should be made with the real headphones, accessories and normal packing method.

What to Include in a Headphone Packaging RFQ

Provide the supplier with:

Clients seeking a coordinated box and insert solution can review EastColor’s custom audio product packaging capabilities before preparing the final specification.

How to Evaluate a Headphone Packaging Supplier

A suitable supplier should be able to evaluate the headphone as a physical product rather than quote only from a box size.

Ask whether the supplier can:

1. Review the product and accessory layout

2. Recommend suitable box structures

3. Develop a product-specific insert

4. Identify pressure-sensitive areas

5. Produce a structural sample

6. Support printing and finishing selection

7. Check packing and removal

8. Coordinate the retail box and shipping carton

9. Control insert and box tolerances

10. Produce an approval sample before bulk manufacturing

EastColor describes its business as a custom paper packaging manufacturer offering design, research and development, structural engineering, manufacturing and logistics-related support. (East Color)

For projects involving multiple audio models or coordinated electronics packaging, buyers can contact a custom paper packaging manufacturer with physical samples, product drawings and artwork requirements.

FAQ

What is the most suitable box for over-ear headphones?

Rigid lid-and-base boxes, magnetic boxes and strong drawer boxes are commonly considered for over-ear headphones. The final choice should depend on headphone dimensions, weight, insert design, retail positioning and shipping method.

What material is used for a headphone box insert?

Common headphone box insert materials include EVA foam, soft foam, molded pulp, folded paperboard, corrugated board and felt. The appropriate material depends on product weight, surface sensitivity, presentation and protection requirements.

How should a headphone packaging box protect the headband?

The insert should support stable parts of the headphone frame while avoiding excessive pressure on padded or flexible headband sections. The packed position should be checked using an actual product sample.

Are EVA foam inserts suitable for headphone packaging?

EVA inserts can provide precise cavities and organized presentation for headphones and accessories. Thickness, hardness, contact points and removal features should be tested before production.

Can headphone packaging boxes be made without plastic?

Paperboard, corrugated and molded pulp structures can reduce or remove plastic components in many designs. The selected paper-based structure must still provide suitable restraint, surface protection and shipping performance.

How do you pack headphone cables inside a retail box?

Cables should be coiled without tight bending and placed in a dedicated compartment, sleeve or recess. They should not move freely against the ear cups, screen surfaces or charging case.

Is a window box suitable for headphone retail display?

A window box can help customers see the product, but the window size and position may affect box strength, dust protection and material separation. The complete structure should be tested with the loaded product.

Does a custom headphone box need an outer shipping carton?

A protective outer carton is often advisable for parcel delivery, especially when the retail box uses premium printing, windows, magnetic closures or easily damaged corners.

How can headphone packaging size be reduced?

Use the product’s intended folded position, place accessories beneath or beside the headphones, remove unnecessary void space and develop the insert around exact product dimensions.

What should be checked in a headphone packaging sample?

Check product fit, headband pressure, ear-cup movement, cable organization, product removal, closure, print quality, surface contact, box deformation and the final unboxing sequence.

Conclusion

A headphone packaging box must protect a three-dimensional product while supporting brand presentation, accessory organization and retail communication.

The process should begin by identifying the headphone type, packed position, vulnerable areas, accessory list and distribution channel. The box structure and insert can then be developed together.

The insert should stabilize the headphones without pressing against cushions, hinges, controls or connectors. Cables and adapters should have separate compartments, while the outer graphics should communicate the product clearly in both physical and online retail environments.

A successful package is not simply a box with a headphone-shaped cavity. It is a coordinated system that considers product restraint, removal, retail display, shipping protection, production assembly and brand experience.

For custom structures, inserts and printed presentation, EastColor’s electronics packaging solutions provide a relevant starting point for headphone, earphone and audio accessory packaging projects.
